P8 P10 5000nits Digital LCD Billboard SMD3535 Advertising Frontage Lighting

Name: P8 P10 5000nits Digital LCD Billboard SMD3535 Advertising Frontage Lighting
Brand: JuCaiYuan
Price: 1 USD

China P8 P10 5000nits Digital LCD Billboard SMD3535 Advertising Frontage Lighting factory

Brand Name : JuCaiYuan

Model Number : Outdoor P5 P4 P6 P8 P10

Certification : CE/ROHS/FCC

Place of Origin : Shenzhen,China

MOQ : 1 Square meter

Price : negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000sqm per month

Delivery Time : 3-25 working days after finished the payment

Packaging Details : Strong Carton Box, Standard Wood Case, Flight Case etc

product : outdoor led screen P3 P4 P5 P6 P8 P10

Brightness : Over 5000nits

Warranty : 2 Years

Application : Indoor Outdoor

Technology : Frontage-lighting

Screen Dimension : Customized

Material : Acrylic Frame

High Light : transparent led curtain display, glass wall led display

Contact Now

Overview

Quick Details

Application:: outdoor advertising

Color:: full color

Panel Size:: 320mm*160mm

Pixel Pitch:: 10mm, 10mm

Place of Origin:: Guangdong, China

Model Number:: JCY-P10mm-2S

Brand Name:: JUCAIYUAN

Module size:: 320 mm X 160 mm

Module Pixel Resolution:: 32dots*16dots

Module Pixles:: 512 dots

Pixels Density:: 10000dots/m2

Brightness:: 7000nits

Package Mode:: SMD3535

Life span:: 10 Years

Warranty:: 2 Years

Name:: Outdoor waterproof full color p10 advertising large led display screen

Supply Ability

Supply Ability: 500 Square Meter/Square Meters per Month

Packaging & Delivery

Packaging Details: Wooden case , Flight case

Port: Shenzhen

Picture Example:

Lead Time:

Quantity(Square Meters)	1 - 50	51 - 100	101 - 200	>200
Est. Time(days)	15	18	25	To be negotiated

Product Description

00:00

00:19

Specification

Para Name	Parameter
Module No	JCY-OF4R	JCY-OF5R	JCY-OF6R	JCY-OF8R	JCY-OF10R
Pixel pitch	4mm	5mm	6mm	8mm	10mm
Module size	256 x 128mm	320x 160mm	192 x 192mm	256mm x 128mm	320 x 160mm
Module resolution	64 x 64	64 x 32	32 x 32	32 x 16	32 x 16
Pixel density	62,500pixels/㎡	40,000pixels/㎡	27,777pixels/㎡	15,625 pixels/㎡	10,000 pixels/㎡
LED package	SMD	SMD	SMD	SMD	SMD
cabinet size	1024x 1024mm or Custom size	960 x 960mm or Custom size	960 x 960mm or Custom size	1,024 x 1,024mm or Custom size	1280 x 1280mm or Custom size
cabinet resolution	128 x 128	128 x 128	128 x 128	128 x 128	128 x 128
Brightness	5,000nits	5,500nits	6,000nits	6,500nits	7,000nits
Scan mode	1/8 Scaning	1/8 Scaning	1/8 Scaning	1/4 Scaning	1/2 Scaning
Refresh rate	≥ 1,920hz
Power consumption	Max: 980 W/㎡; Average: 380 W/㎡
working temprature	-20℃~60℃
Working Humidity	10~99%
Best view distance	≥4m	≥5m	≥6m	≥8m	≥10m
Viewing Angle	Horizontal 140°(+70/-70) , Vertical 120°(+60/-60)
Ingress Protection	Front IP65, Back IP54

P8 P10 5000nits Digital LCD Billboard SMD3535 Advertising Frontage Lighting

P10 mm, 3535 packaging, a large angle of view,power consumption, color uniformity, easy maintenance and operation simple.

High brightness, High reliability. It can be based on outdoor environment brightness, humidity, temperature automatic adjustment ,energy-saving, intelligent control.

Recommended viewing distance for various Pixel pitch.
Since the size of the screen has an influence on the viewing distance, it is necessary to select a suitable model and size according to the actual situation.

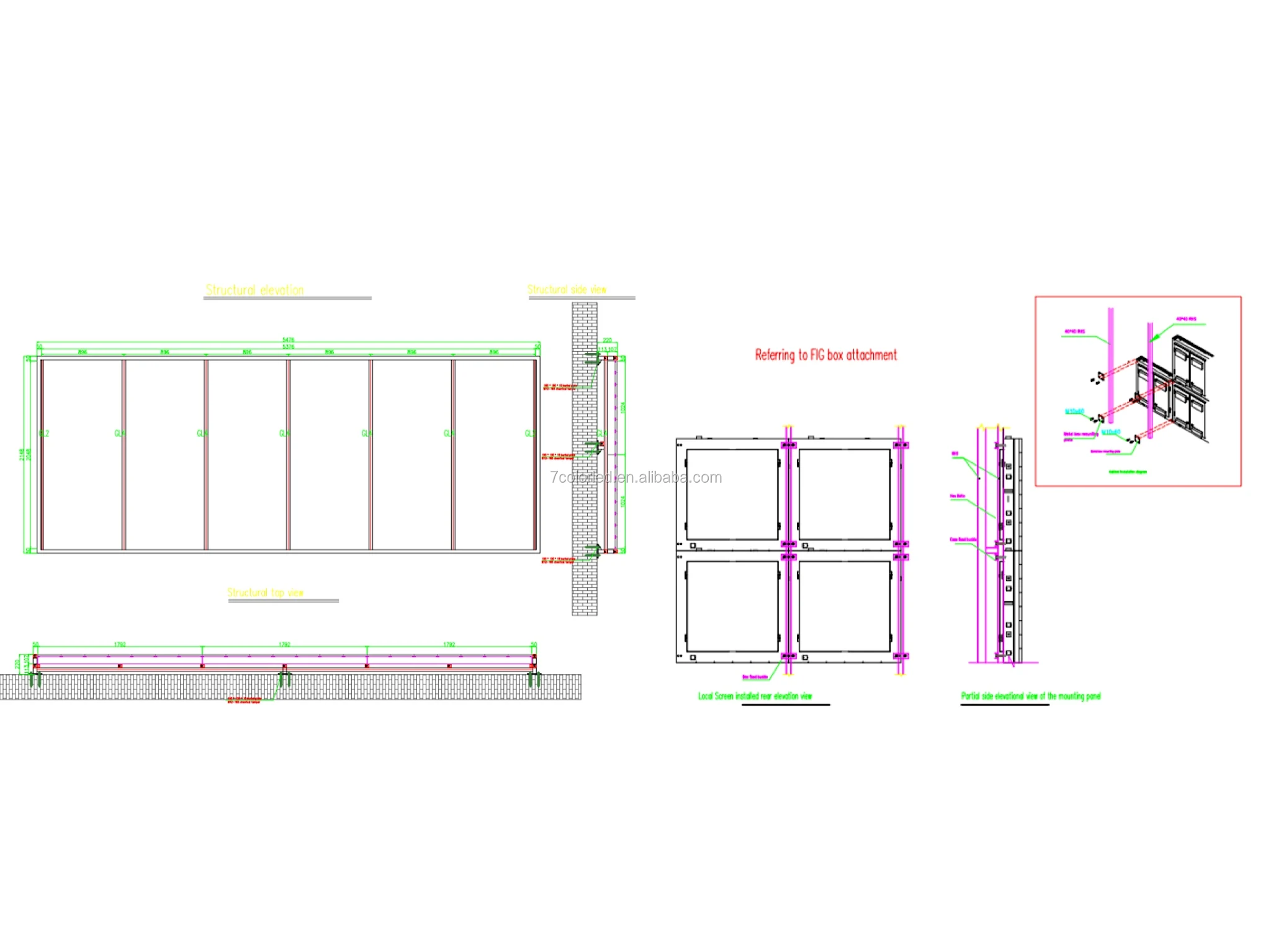

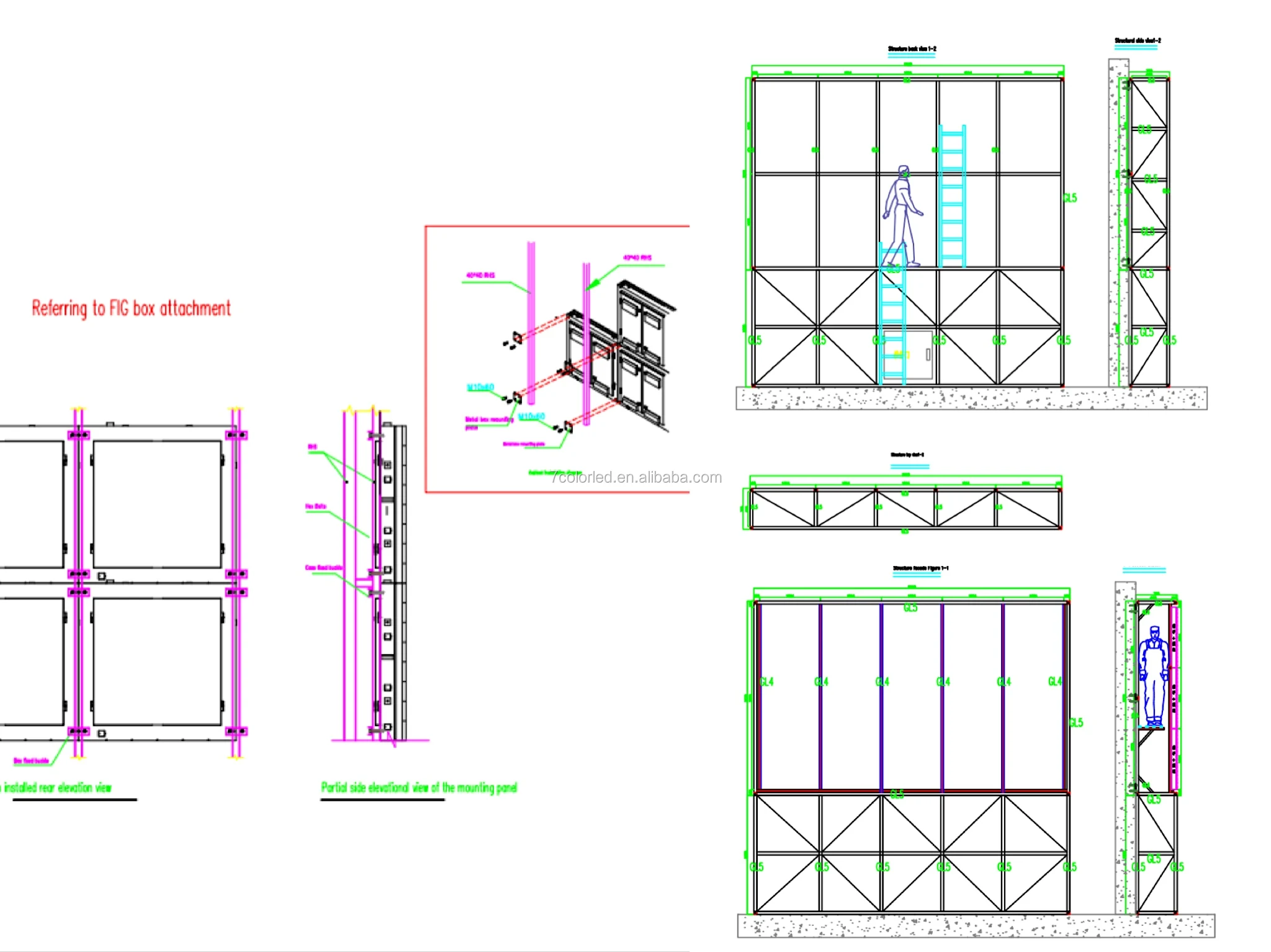

Where is LED display installed?

Contact us soon,we can provide structure frame design drawing and installation suggestions.

Pillar / Pole LED display

Wall Mounted led display

Base type installtion led display screen

Hang mounted led display screen

Application

Ceitification

Packing & Delivery

FAQ
